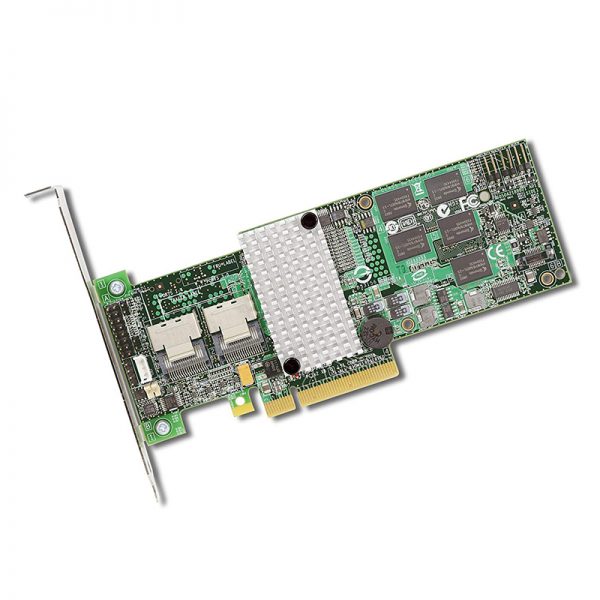

MegaRAID SAS 9260-8i SAS 6G/s 8PORT int SAS/SATA PCI-e2.0 RAID
| Mode Name | 9260-8i |
| Bus Type | x8 PCI Express 2.0 |
| Chipset | LSISAS2108 RAID on Chip (ROC) |
| Cache Memory | 512MB 800MHz DDRII SDRAM |
| Internal Ports | 8 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 6, 10, 50, and 60 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 128 SATA and/or SAS devices |
| Internal Connectors | 2 Mini-SAS SFF8087 |
| MTBF | 1,093,393 hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management Software |
MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), WebBIOS |
| Cache Protection | LSIiBBU07 or LSIiBBU08, an intellident battery backup module option that directly remotely connects to controller |
| Physical Dimensions | 6.6″ x 2.536″ (Low-Profile) |
| Warranty | 3 years |
