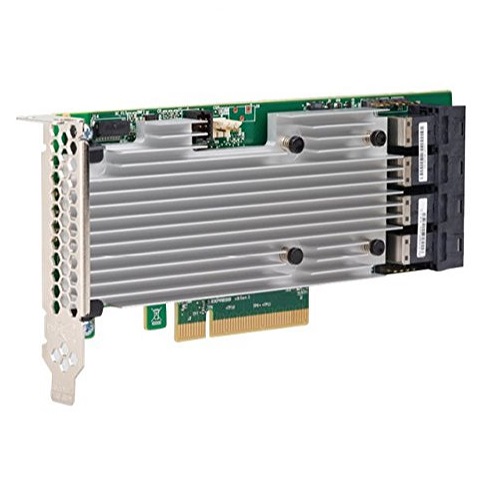

MegaRAID SAS 9361-16i SAS 12G/s 16PORT int SAS/SATA PCI-e x3.0 RAID
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.
- Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection.
| Mode Name | 9361-16i |
| Bus Type | x8 PCI Express 3.0 |
| Chipset | SAS3316 dual core RAID on Chip (ROC) |
| Cache Memory | 2GB 1866MHz DDR3 SDRAM |
| Internal Ports | 16 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 6, 10, 50, and 60 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Internal Connectors | 4 Mini-SAS HD SFF8643 |
| MTBF | > 2,500,000 hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management
Software |
LSA (LSI Storage Authority),
MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | Optional CacheVault Module (CVPM02) |
| Physical Dimensions | 6.127” x 2.712” (Low profile) |
| Warranty | 3 years |
