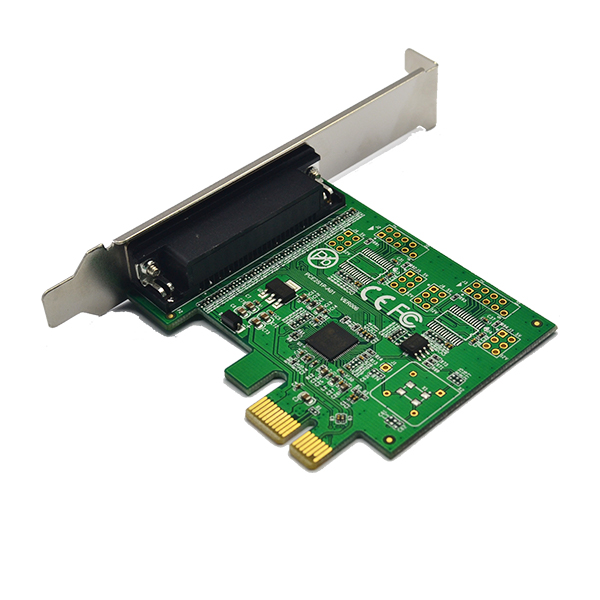

MTE-PA100 1-Port Parallel PCI Express card
PCIe Parallel Port Expansion Card, PCI Express to DB25 LPT Converter Adapter Controller for Desktop with Low Bracket
- Compatible with IEEE 1284 – SPP/Byte/ECP Mode
- SPP/EPP/ECP Parallel port fully supports existing Centronics interface.
- Compliant with PCI Express Base Specification 1.0a.
- Includes low profile/half-height mounting bracket.
- PCI 2.2 and PCI Power Management 1.0 compliant.
| Mode Name | MTE-PA100 |
| Bus Type | PCI Express |
| Chipset | AX99100 |
| Number of Ports | 1-Parallel |
| Transfer Rate | 1.5Mbps |
| Dimensions | |
| Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 80°C |
| OS Compatibility | Windows 2000/XP/2003/Vista/7/8/10 |
