MTE-SA220-R 2-Port Hardware RAID 6Gbps SATA III PCI Express 2.0 card
Support Hardware RAID 0 / RAID 1 / SPAN / Normal (non-RAID) Modes!
- 6Gbps SATA III PCIe 2.0 2Lane Host Adapter
- Hardware RAID controller to offload host CPU for max performance
- Fully compliant with Serial ATA specifications 3.2
- Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
- Supports H/W RAID 0 / RAID 1 / SPAN (Big Disk) and Normal (non-RAID) modes for HDD and SSD
- Non-RAID mode supports Optical Drive, Blu-Ray Drive and SATA Command-based Port Multiplier
- SATA Hot-plug capability
- Supports ATA and ATAPI commands
- Supports Native Command Queuing (NCQ)
- Supports TRIM
- OS Built-in AHCI inbox driver natively in Windows 10, 8.1, 7.0, Server 2008, 2008R2, 2012R2, Linux, Mac 10.9.1 and later, no additional driver required
- Legacy BIOS on board support OS Booting on Windows and Linux
- BIOS <Ctrl-R> Configuration Utility support RAID Configuration on Windows and Linux
- Provides Windows & Mac GUI software to configure and Monitor the status of Hardware RAID and support max two RAID groups
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile bracket included
- Two Pin headers on board for Device LED connection
- Require an empty PCIe x2 or x4 or x8 or x16 slot in computer
- Supports operating temperature range: +0 ~ +85 ºC
- Fully RoHS compliant
| Mode Name | MTE-SA220-R |
| Bus Type | PCI Express 2.0 |
| Chipset | ASMedia |
| Number of Ports | 2-SATA III |
| Transfer Rate | 6Gbps |
| Dimensions | N/A |
| Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 80°C |
| OS Compatibility | Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac 10.x |
相關商品
MegaRAID SAS 9361-8i SAS 12G/s 8PORT int SAS/SATA PCI-e x3.0 RAID
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.
MegaRAID SAS 9361-16i SAS 12G/s 16PORT int SAS/SATA PCI-e x3.0 RAID
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

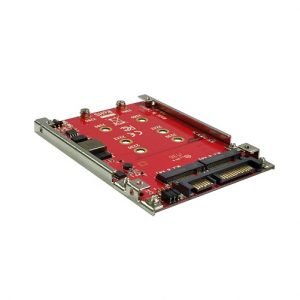

MT2-GX200R H/W RAID 2x M.2 SATA SSD to 2.5” 7mm SATA III SSD
