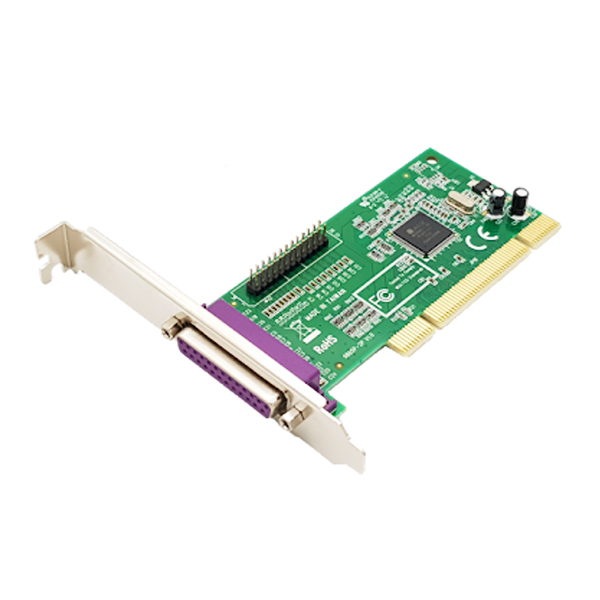

MTI-PA200 2-Port Parallel PCI card
PCI Parallel Port Expansion Card, PCI to DB25 LPT Converter Adapter Controller for Desktop with Low Bracket
| Mode Name | MTI-PA200 |
| Bus Type | PCI |
| Chipset | ASIX-Moschip MCS9865 |
| Number of Ports | 2-Parallel (DB-25 (25 pin, D-Sub) Female) |
| Transfer Rate | 1.5 Mbits/sec |
| Dimensions | 55（W）x 120（L）mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -20°C to 85°C |
| OS Compatibility | Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |
