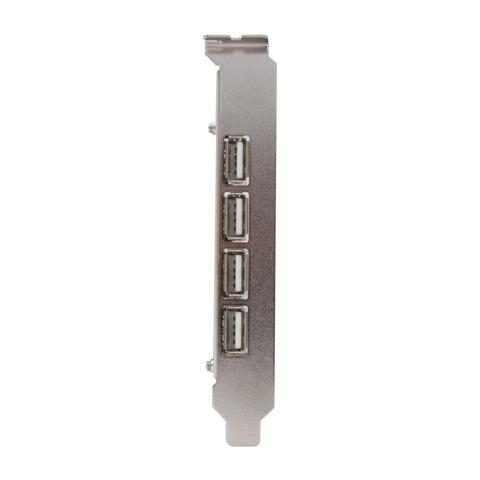

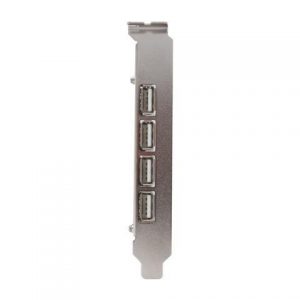

MTI-U2500 5-Port High Speed USB 2.0 PCI Controller Card
This high speed 5-port USB 2.0 PCI card brings you 480Mbps of Hi-Speed USB 2.0 connectivity.
- Data Transfer Rate: Hi-Speed up to 480Mbps
- External Ports: 4x USB 2.0
- Internal Ports: 1x USB 2.0
- Host Interface: PCI
- Chipset: NEC D720101
| Model number | MTI-U2500 |
| Chipset | NEC/uPD720101 |
| Port number | USB2.0 x 5 |
| Interface | PCI slot |
| Dimension | 115*83.6*89mm |
| Support OS | Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5) |
| Environment | Operating Temperature: 0 ℃ -50 ℃ |
| Relative Humidity: 10%-90%(non-condensing) | |
| Storage Temperature: 0℃ – 80℃ | |
| Relative Humidity: 5%-90%(non-condensing) | |
| Features | USB2.0 Specification compliant, backward compatible with USB1.1
5 external USB2.0 ports USB2.0 data transfer rate up to 480Mbps |
