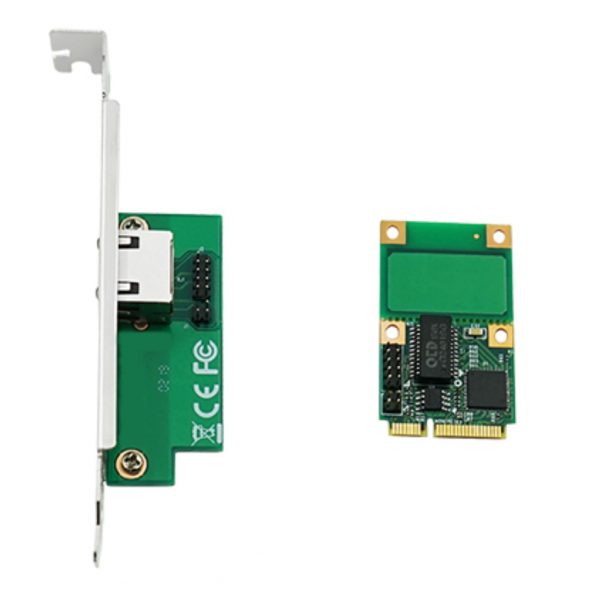

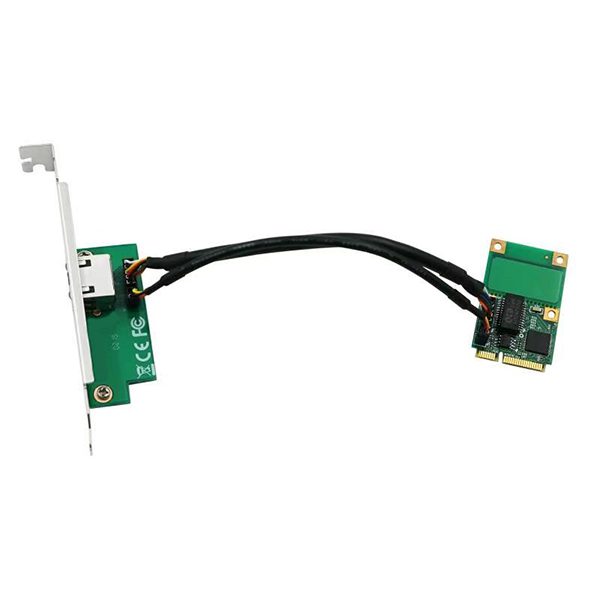

MTN210M-1RJ Mini PCIe Single Port Gigabit Copper Ethernet Server Adapter (Intel I210 Based)
Mini PCIe Single Port Gigabit Copper Ethernet Server Adapter (Intel I210 Based)
- Based on the Intel I210
- Supports 10/100/1000Mbps
- Mini PCI Express interface
| Model Name | MTN210M-1RJ | |
| Controller | Intel(R) I210 | |
| Transmission medium | Copper | |
| Type | 1000Base-T Cat 5E/6 or higher , up to 100m | |
| 100Base-Tx Cat5/5E/6 or higher , up to 100m | ||
| 10Base-T Category 3/4/5/5E/6 or higher , up to 100m | ||
| Baffle Height | Half & full height | |
| Power Consumption | 1.0W | |
| Connector | 1*1G RJ45 | |
| PCI-e Bus Type | Mini PCI Express | |
| Data rate per port | 10/100/1000Mbps | |
| Power supply | Mini PCIe | |
| Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3az – Energy Efficient Ethernet (EEE) |
|
| OS Support | * Windows 7、8/8.1、10
* Windows Server 2008 / R2 * Windows Server 2012 / R2 * Windows Server 2016 / R2 * Windows Server 2019 / R2 * Linux Stable Kernel version 2.6.x / 3.x / 4.x or later * CentOS / RHEL 6.x / 7.x or later * Ubuntu14.x/16.x or later * FreeBSD 9 / 10 / 11 or later * Vmware ESX/ESXi 5.x / 6.xor later |
|
| PXE | No | |
| DPDK | Yes | |
| WOL | No | |
| iSCSI | Yes | |
| Jumbo Frames | Yes | |
| FCoE | No | |
| LED Indication | ||
| LED Indication | 1000Mbps：Orange bright + Green flashing | |
| 10Mbps/100Mbps: Green flashing | ||
| Environment Features | ||
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) | |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) | |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ | |
| Certification | FCC B,CE | |
| Physical Features | ||
| Product Size(mm) | 30*50.9*1.0 + 63*25.3*1.6 | |
| Sackage Size (mm) | 170*150*30 | |
| Weight(g) | 139 | |
