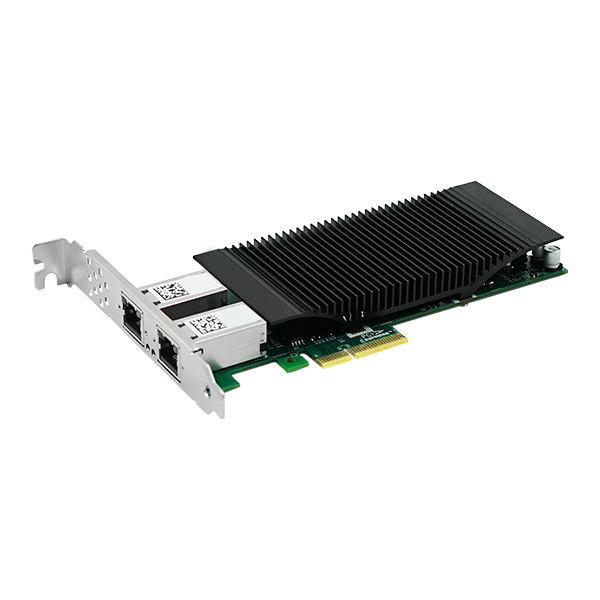

MTN350-2RJ-PoE
2-Port 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350)
• Dual Port 10/100/1000Mbps adapter
• PCI Express (PCIe) v2.0(2.5 GT/s) x1 lanes
• Dual Port PoE+ output power consumption up to 30W per port
• PCI Express (PCIe) +12V Power Supply
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af
• Selected RJ45 connector with thickened gold to ensure more reliable connection
• Special screw lock to make sure the connection more stable
• Low Profile and full-Height bracket
Applications: Machine Vision, Industrial Control, Access Control, In-Vehicle System
MTN350-2RJ-PoE is a PCIe x4 PoE Gigabit Dual Port Copper industrial Ethernet Server Adapter based on the Intel I350 chipset,and is compatible with x8,x16 lanes. The PoE adapter is designed mainly used on industrial field vision inspection server and equipment, vision field client, fast moving Ethernet data transmission equipment etc, also suitable for ordinary servers.
The MTN350-2RJ-PoE interface designed for industrial cable access, with the MABLETECH customized industrial Ethernet cable, has screw to lock copper cable and RJ45 more stably, effectively solve the problem of the instability of industrial sites RJ45 connection copper cable, and be compatible with standard cable access. The larger heat sink can effectively solve the problem of heat dissipation of the PoE card under the condition of poor heat dissipation, and effectively ensure the stable operation of the PoE adapter card for a long time.TCarefully selected RJ45 connector with thickened and deep gold to ensure more solid and reliable connectivity.
| Features | |
| Controller | Intel(R) 82576EB |
| Cable Medium | Copper Cable |
| Cable type | Cat 5E and Cat6:1000Base-T up to 100m (POE power min requirement Cat5) |
| Cat 5E and Cat6:100Base-T up to 100m (POE power min requirement Cat5) | |
| Bracket | Full-height bracket |
| TDP (max) | 3W |
| Single PoE Output (max) | 30W |
| Support OS | Windows XP |
| Windows Vista | |
| Windows 7 | |
| Windows 8/8.1 | |
| Windows 10 | |
| Windows Server 2003 /R2 | |
| Windows Server 2008 /R2 | |
| Windows Server 2012 /R2 | |
| Windows Server 2016 /R2 | |
| Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later | |
| Red Hat Enterprise Linux 5 / 6 / 7 or later | |
| SUSE Linux Enterprise Server 10/11 or later | |
| VMware ESX/ESXi 4.x/5.x/6.x or later | |
| FreeBSD 9 / 10 or later | |
| Connector | 2 *1G 8-Pin RJ45 interface |
| PCIe Bus Type | PCI Express v2.0(2.5GT/s)x4；compatible with x8 x16 lanes |
| Rate | 100Mbps/1000Mbps |
| Power Supply | PCIe power supply +3.3V±9%/ +12V±8% |
| Technical Features | |
| Ethernet Power Mangement | Yes |
| IEEE Standard | IEEE 1588
IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x, IEEE802.3af IEEE802.3at |
| PXE | Yes |
| DPDK | Yes |
| Jumbo Frame Packet | Yes |
| iSCSI Support | No |
| FCoe Support | No |
| WOL | No |
| Environment Features | |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 90% non condensing under 35℃ |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
| LED Indicator | |
| LED Indicator | 1000Mbps: LINK: Yellow, ATC: Green |
| 10Mbps/100Mbps: ACT: Green | |
| Driver | |
| Windows | Intel(R) Gigabit ET Dual Port Server Adapter |
| Linux | Intel Corporation 82576 Gigabit Network Connection (rev 01) |
| Testing Details | |
| Server/User Configuration | CPU:Intel Xeon E5-2658 v3 @ 2.00GHz |
| Main Board: Giada N50M-VU | |
| RAM:16 GB ( Hynix DDR4 2133MHz ) | |
| System Disk:eDlrre SSD ( 60 GB ) | |
| OS: Centos 7.1 | |
| TCP Bandwidth / Throughput testing | Test Topology:S-C |
| Server:iperf -s | |
| Client:iperf -c 192.168.30.20 -P 10 -i 5 -t 60 | |
| Testing Application Platform | |
| Server | DELL R710,DELL R720,DELL R730 |
| Lenovo 8871 | |
| HUAWEI H22M-03 | |
| HP DL360P Gen8 | |
| Main Board | Giada N50M-VU |
| MSI B350M MORTAR | |
| Supermicro Xl0SRL-F | |
| Intel S1200SPS | |
| Intel S1200BTL | |
| Intel S1400PF | |
| Intel S2600IP | |
| ASUS X79Z | |
| ASRock B250M-HDV | |
| GIGABYTE B75-D3V | |
| ASUS P8H77-V LE | |
| Physical Features | |
| PCB size(mm) | 159.5*68.8*1.6 |
| Weight (g) | 148 |
Order Information
| Part Number | Speed | Controller(s) | Port number | Port type | Description |
| MTN350-2RJ-PoE | POE | Intel I350 | 2 | RJ-45 Ports | 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350) |
| MTN350-4RJ-PoE | 4 | ||||
| MTN350-8RJ-PoE | 8 |
