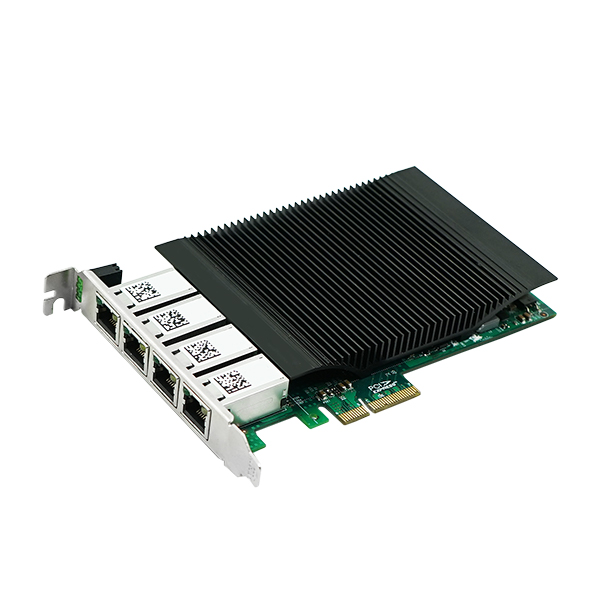

MTN350-4RJ-PoE
4-Port 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350)
• Quad Port 100/1000Mbps Industry Adapter
• PCI Express (PCIe) v2.1(2.5GT/s) x4 lanes
• Supports +12V DC AT/ATX input
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af, two port delivers up to 30W of power, 95W total power budget
• 2.25KV Isolation protection on LAN ports and power
• Support WOL,PXE boot
• PCB Size (mm): 149*104.3*1.6
Applications: Machine Vision, Industrial Control, Access Control, In-Vehicle System
The MTN350-4RJ-PoE is a kind of high-performance image capture card, independently researched and designed by MABLETECH. The cards supports 4 independent 10/100/1000BaseT(X) 802.3af & 802.3at (PoE) compliant Ethernet ports, With 12 VDC AT/ATX power input, the MTN350-4RJ-PoE can boost then provides up to 25.5 watts at 48 VDC power to maximum 2 x PoE ports on each module.
It allows power to be supplied to connected devices, such as PoE-based Gigabit cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the MTN350-4RJ-PoE is ideally designed for scientific and medical research Instrumentations, Machine Vision, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
| Controller | Intel I350 |
| Transmission Rate Per Port | 10/100/1000 Mbps |
| Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m |
| 100BASE-Tx:Cat5/5e/6or higherup to 100m | |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0 °C to 55°C (32 °F to 131°F) |
| Boot Option and Virtualization | PXE support, Intel® VT-c |
| LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, |
| 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |
| Operating System Support | Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
| WindowsXP / Vista /7 / 8 / 8.1 / 10 | |
| Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later | |
| Linux SLES 9 / 10 / 11or later | |
| VMwareESX/ESXi4.x/5.x/6.xor later |
Order Information
| Part Number | Speed | Controller(s) | Port number | Port type | Description |
| MTN350-2RJ-PoE | POE | Intel I350 | 2 | RJ-45 Ports | 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350) |
| MTN350-4RJ-PoE | 4 | ||||
| MTN350-8RJ-PoE | 8 |
