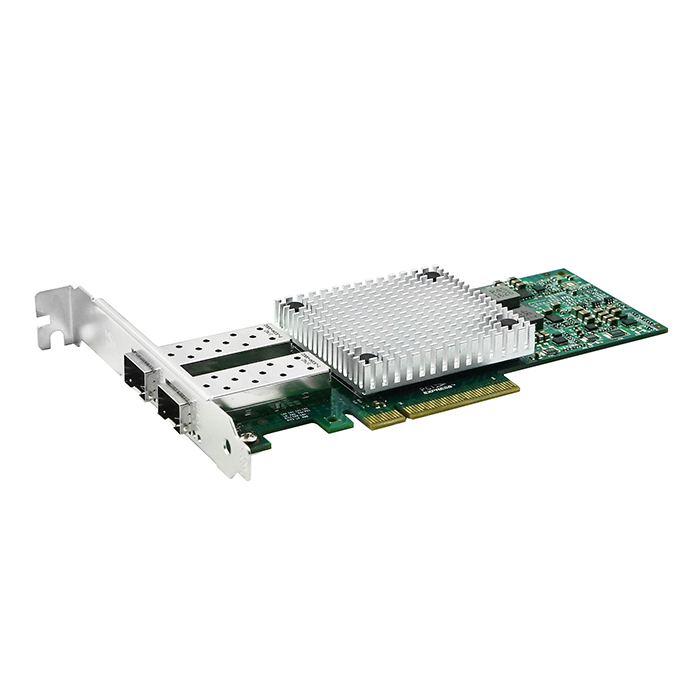

MTN710-2SFP+ 10Gigabit PCI-e 3.0 x8 Dual-port SFP+ Fiber NIC Server Adapter (Intel X710 Based)
MTN710-2SFP+ is Mabletech a new generation of high-performance server network adapter, based on the Intel X710 controller.
The Server Adapter addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
- Dual-port 10GbE server adapters
- PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
- SFP+ Connectivity
- PXE,iSCSI boot
- Exceptional Low Power Adapters
- IEEE 802.3ad and 10G Ethernet specification compliance
- Data Plane Development Kit (DPDK) support
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- Low Profile and Full Height Bracket
| Controller | Intel X710 |
| Transmission rate per port | 10GbE |
| Network Standard Physical Layer Interfaces | 10GBASE-SR |
| 10GBASE-LR | |
| SFF-8431: 10GSFP+ DAC (Direct Attach Copper) | |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Network Virtualization | VLAN,VLAN tag, VXLAN, NVGRE, GENEVE,VLMB |
| LED Indicators OPERATION | Link Green:10Gb/s, Link Yellow: 1Gb/s |
| Power supply | PCI Express +12V±8%, +3.3V±8% |
| Operating System Support | Windows Server 2012 R2/2012 R2 core/2012/2012 core/2008 R2/2008 R2 core |
| Windows 7 x64/8/8.1/10 | |
| Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later |
