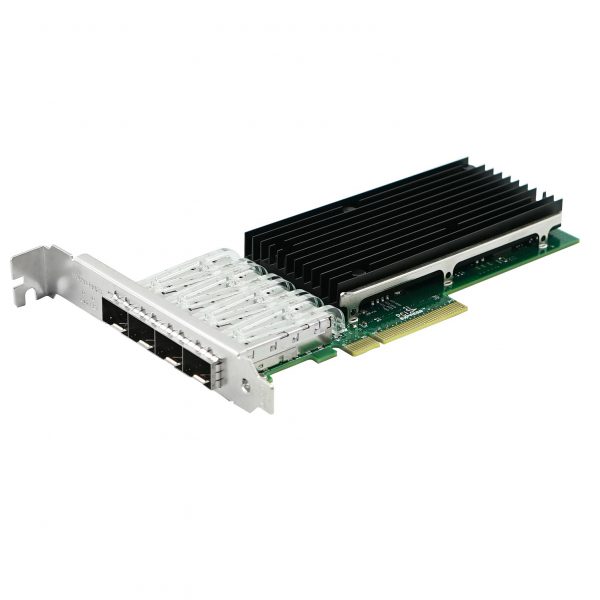

MTN710-XL-4SFP+ PCIe v3.0 x8 10 Gigabit Quad Port SFP+ Ethernet Server Adapter (based on Intel XL710)
MTN710-XL-4SFP is a PCIe x8 10Gbps Quad Port SFP+ server adapter based on the Intel XL710 chipset and is compatible with PCIe x16 slot. The server adapter has a flexible 4 port 10GbE connection rate on a PCI Express V3.0 x8 slot, which is convenient for use in a use environment with multiple network requirements.
The Server Adapter addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
MTN710-XL-4SFP is good solution for multiple networks and deploying key network applications and environments on high-performance servers.
- Quad-port 10GbE SFP+ server adapters
- PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
- SFP+ Connectivity
- PXE,iSCSI boot
- Network Virtualization
- IEEE 802.1q and 10G Ethernet specification compliance
- Data Plane Development Kit (DPDK) support
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- Low Profile and Full-Height bracket
| Controller | Intel XL710 |
| Transmission Rate Per Port | 10000Mbps |
| Network Standard Physical Layer Interfaces | 10GBASE-SR, 10GBASE-LR |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0℃ to 55℃(32°F to 131°F) |
| Network Virtualization | VLAN, VLAN tag, VXLAN, NVGRE, GENEVE,VLMB |
| LED Indicators | Link Yellow,10Gb/s:Green blinking |
| SYSTEM SUPPORT | Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 R2 |
| Windows 7 / 8 / 8.1 / 10 | |
| FreeBSD 11.0or later | |
| Linux SLES 11 / 12or later | |
| Linux Stable Kernel version 2.6.x/3.x/4.x or later | |
| VMware ESX/ESXi 5.x/6.x or later |
