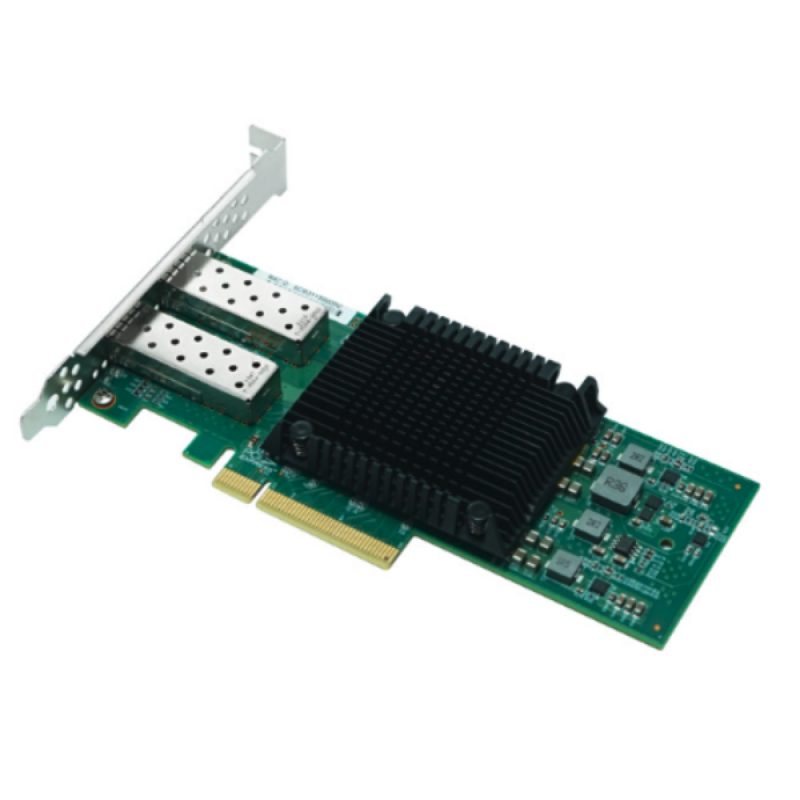

MTN810-2SFP28 PCIe v4.0 x8 25G Dual-port SFP28 Ethernet Server Adapter (Intel E810)
- PCIe v4.0 x8 dual port 25G Ethernet network adapter;
- There are hardware accelerated packet processing extension function and application queue technology;
- Optional support for RDMA’s iWARP and RoCE v2 features;
- The adapter is compatible with PCIe v3.0 and v2.0 backwards;
- Combining application queue with application queue can reduce application delay and improve throughput
| Controller | Intel E810 |
| Transmission rate per port | 1GbE/10GbE/25GbE |
| Bus Type | PCIe v4.0 x8 |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Connector | 2*25G SFP28 |
| System Support | Windows Server 2016 R2
Windows Server 2019 R2 or later Linux SLES 12 or later CentOS / RHEL 7.5 or later; Ubuntu 20.10 or later; Linux Stable Kernel version 4.19 or later; Vmware ESX/ESXi 5.x or later; |
| Protocol Support | IEEE 802.3by-2016 25GBASE-X Ethernet
IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.1Qav IEEE 802.1Qbu IEEE 802.1Qbv IEEE 802.3br IEEE 1588 PTP v1&v2 IEEE 802.3ad IEEE 802.3az – Energy Efficient Ethernet |
| iSCSI/NFS | YES |
| Jumbo Frames | YES |
| DPDK | YES |
| PXE | YES |
| RDMA iWARP | YES |
| RDMA RoCv2 | YES |
| Virtual network | VxLAN, GENEVE, NVGRE, MPLS, VxLAN-GPE |
