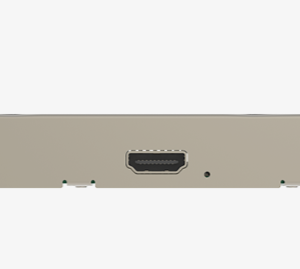

Pro Capture HDMI 4K
Captures one of the followings
HDMI + embedded audio
Input Interface
- HDMI x1
- Support input resolution up to 4096×2160 pixels
Host Interface
- PCIe Gen2 x4
Video Engine
10-bit video processing
Deinterlace
Cropping
Color Adjustment
Hardware Timestamp
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
OSD
SG-DMA Transmission mode
OSD
SG-DMA Transmission mode
Signal Detection & Support
Auto Detection of Input Signal Format
3D HDMI
Time Code
Software Environment
OS
Windows, Linux, Mac
Driver and Firmware
Universal Driver, Updatable Firmware
Included Software
Pro Capture Utility, Capture Express
Compatible Software
