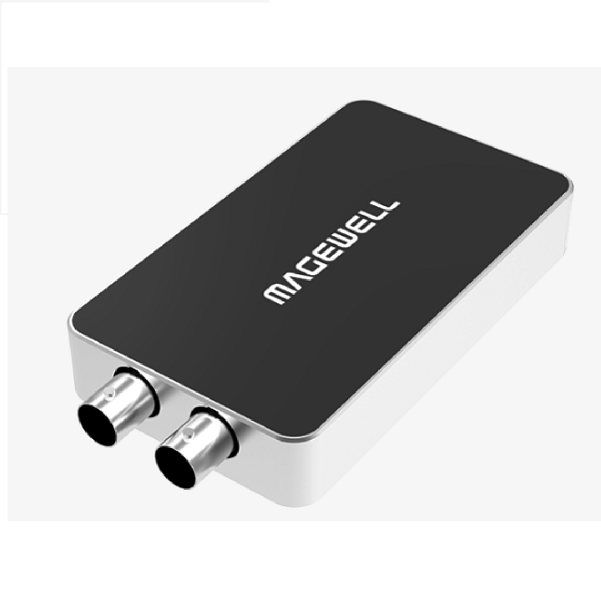

USB CAPTURE SDI 4K PLUS
Captures one of the followings
- Capture SD/HD/3G/2K/6G SDI + embedded audio
- Loop-through SD/HD/3G/2K/6G SDI
- Audio input via Line in
- Extract SDI embedded audio and output via Line out
Input Interface
- SD/HD/3G/2K/6G SDI x1
- Support input resolution up to 4096×2160 pixels

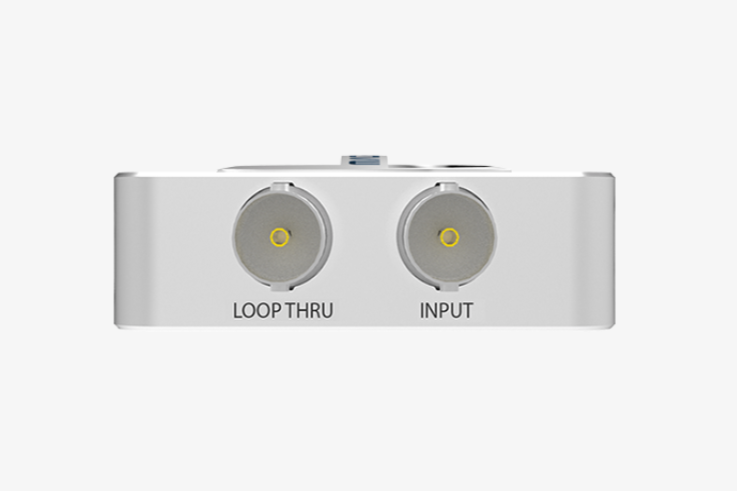

Loop-through Interface
- SD/HD/3G/2K/6G SDI x1
- Support loop-through resolution up to 4096×2160 pixels

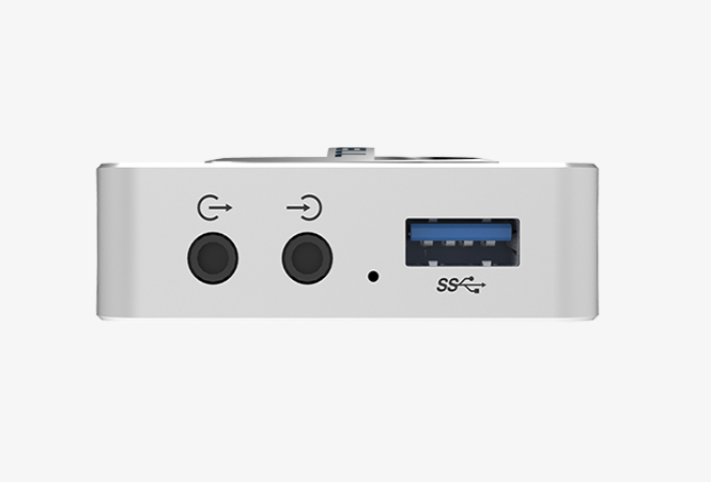

Audio Input Interface
- 3.5 mm audio jack for Line In
Audio Output Interface
- 3.5 mm audio jack for Line Out
Host Interface
- USB 3.0
Video Engine
8-bit video processing
Deinterlace
Cropping
Color Adjustment
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
Mirror and Flip
Signal Detection & Support
Auto Detection of Input Signal Format
Software Environment
Windows, Linux, Mac, Chrome OS
Driver and Firmware
Driver Free, Updatable Firmware
Included Software
USB Capture Utility, Capture Express
>EMPL-G102_Datasheet
>EMPL-G102_Datasheet
