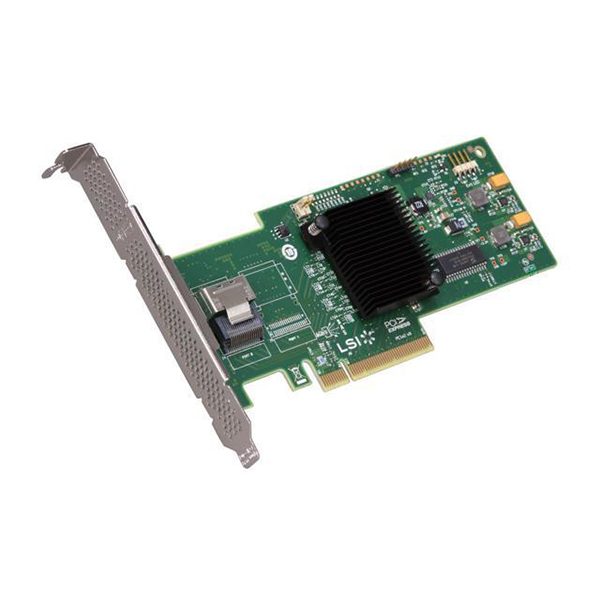

MegaRAID SAS 9240-4i SAS 6G/s 4PORT int SAS/SATA PCI-e2.0 RAID
| Mode Name | 9240-4i |
| Bus Type | x8 PCI Express 2.0 |
| Chipset | LSISAS2008 RAID on Chip (ROC) |
| Cache Memory | N/A |
| Internal Ports | 4 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 10, 50 and JBOD mode |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 64 SATA and/or SAS devices |
| Internal Connectors | 1 Mini-SAS SFF8087 |
| MTBF | >2,000,000 Hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management Software |
MegaRAID Management Suite MegaRAID Storage Manager ™ MegaCLI (command-line interface) WebBIOS |
| Cache Protection | N/A |
| Physical Dimensions | 6.6″ x 2.536″ (Low-Profile) |
| Warranty | 3 years |
