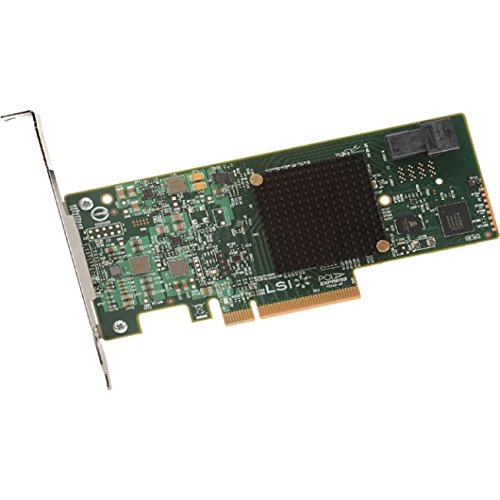

MegaRAID SAS 9341-4i SAS 12G/s 4PORT int SAS/SATA PCI-e x3.0 RAID
| Mode Name | 9341-4i |
| Bus Type | x8 lane PCI Express® 3.0 |
| Chipset | LSISAS3008 PowerPC 476 controller @ 1.2 GHz |
| Internal Ports | 4 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 10 and 50 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 64 SATA or SAS devices in non-RAID (JBOD) mode or 32 drives in RAID mode |
| Internal Connectors | 1 HD Mini-SAS SFF8643 (Horizontal mount) |
| OS Compatibility | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management
Software |
LSA (LSI Storage Authority),
MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Physical Dimensions | 6.6″ x 2.536″ (Low-Profile) |
| Warranty | 3 years |
