SAS 9311-8i SAS 12G/s 8PORT int SAS/SATA PCI-e x3.0 HBA
| Mode Name | 9311-8i |
| Bus Type | x8 lane PCI Express® 3.0 |
| Chipset | LSISAS3008 |
| Internal Ports | 8 |
| External Ports | N/A |
| RAID levels | 0, 1, 1E and 10 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | 1024 |
| Internal Connectors | 2 HD Mini-SAS SFF8643 (Horizontal mount) |
| OS Compatibility | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD See the downloads page for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. |
| Physical Dimensions | Low profile (2.6” x 6.0”) |
| Warranty | 3 years |
相關商品
MTN350-4SFP PCI Express x4 Quad Port Copper Gigabit Server Network Adapter (Intel I350 Based)
MTN350-4SFP is a PCIe x4 1Gbps Dual-Port SFP Sever Fiber Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on a server workstation and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its two or four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.

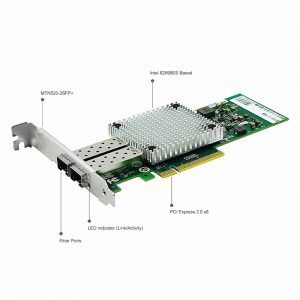

MTN520-2SFP+ 10Gigabit PCI-E x8 Dual SFP+ Fiber NIC Server Adapter (Intel 82599ES Based)
