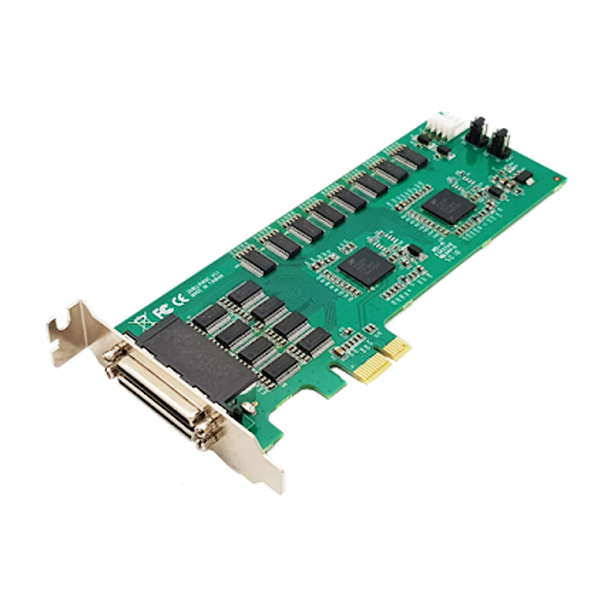

MTE-2160 PCIe to 16Port RS23 Expansion Card Low Profile
- Includes a full profile and low profile/half-height bracket
- Native single chip design
- On chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
- Supports hardware and software flow control
- Supports data transfer rates up to 921.6Kbps on each port
- Compliant with PCI Express base specifications revision 1.0a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
| Model number | MTE-2160 |
| Chipset | EXAR-XR17V358 |
| Port number | 16-DB-9 (9 pin, D-Sub) Male |
| Interface | PCI Express |
| Dimension | 68 (W) x 165 (L)mm |
| Support OS | Windows®XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |
| Environment | Operating Temperature:0°C to 70°C (32°F to 158°F) Storage Temperature:-20°C to 85°C (-4°F to 185°F) |
