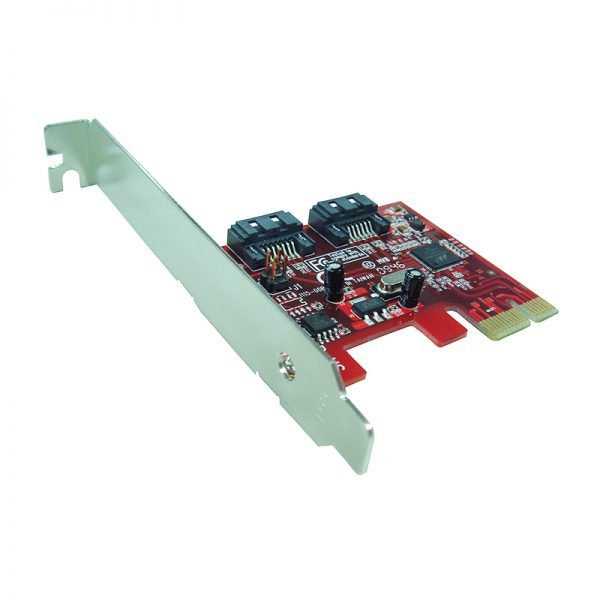

MTE-SA200-R 2-Port Hardware RAID 6Gbps SATA III PCI Express 2.0 card
2Ports 6Gbps Hardware Raid AHCI SATA III PCI Express 2.0 host board to support NCQ & Port Multiplier!
- 6Gbps SATA III 2 Ports PCIe Gen2 1 Lane Host Adapter
- Hardware RAID controller to offload host CPU for max performance
- Supports PCIe 1.0 and PCIe 2.0 motherboard
- Compliant with 5Gbps PCI Express 2.0
- Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
- Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
- Supports Non-Raid mode for Optical Drive and Blu-Ray Drive
- Supports Non-Raid, Hardware RAID0, Hardware RAID1 for HDD and SSD
- Supports ATA and ATAPI commands
- Supports Native Command Queuing (NCQ)
- Supports one SATA FIS-based or Command-based switching Port Multiplier
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile bracket included
- SATA Hot-plug capability
- Two Pin headers on board for LED connection
- OS Built-in AHCI inbox driver natively in Windows 10, Win8, Win7, Vista, 2008, 2012, Linux, Mac 10.x and later, no additional driver required
- BIOS on board support OS Booting & RAID Configuration on Windows and Linux
- Provides Windows XP driver
- Provides Windows & Mac & Linux GUI to configure and Monitor Hardware RAID0, RAID1 and support max two RAID groups
- Fully RoHS compliant
| Mode Name | MTE-SA200-R |
| Bus Type | PCI Express 2.0 |
| Chipset | Marvell |
| Number of Ports | 2-SATA III |
| Transfer Rate | 6Gbps |
| Dimensions | |
| Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 80°C |
| OS Compatibility | Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac 10.x |
