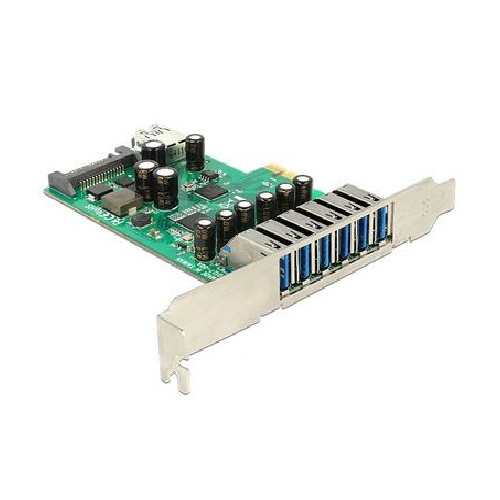

MTE-U3700 7-Port USB 3.0 (6 External+1 Internal) PCI Express 2.0 card
External 6 Ports and Internal 1 Port USB 3.0 SuperSpeed 5Gbps in Low Profile PCIe Host Adapter to support all kind of USB 3.0, USB 2.0, USB 1.1 Devices!
- 6 External and 1 Internal USB 3.0 5Gbps Type-A Ports
- Supports PCIe 1.0 and PCIe 2.0 motherboard
- PCIe Gen2 x1 Lane Host Adapter
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
- All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
- Support USB3.0, USB2.0 and USB1.1 devices
- Compliant with PCI Express Specification 2.0
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile PCIe Bracket included
- Adapter board powered by PCIe slot
- Provides 5V/1A USB bus power to USB devices from Motherboard PCIe slot directly, or sufficient 5V current from PC power supply if 15Pin SATA Power connector connected
- Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required
- Provides Renesas 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2 driver
- Fully RoHS compliant
| Mode Name | MTE-U3700 |
| Bus Type | PCI Express |
| Chipset | Renesas |
| Number of Ports | 6-USB 3.0 External Port
1-USB 3.0 Internal Port |
| Transfer Rate | SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction |
| Dimensions | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | 0°C to 80°C |
| OS Compatibility | Windows 2000/XP/2003/Vista/7/8/10, Linux. |
