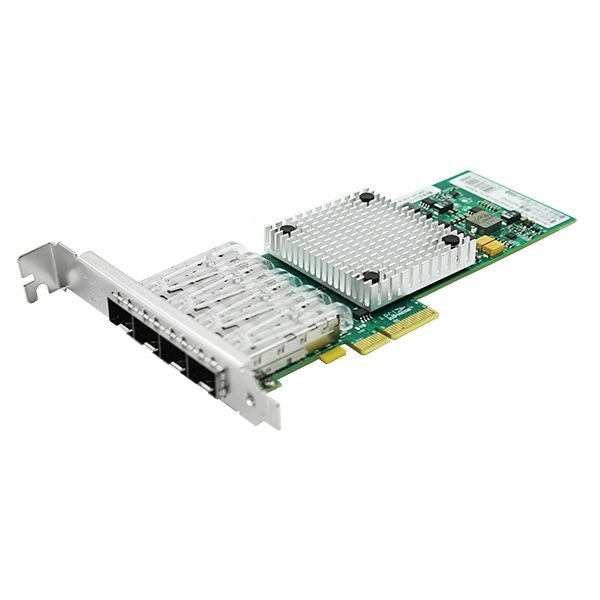

MTN350-4SFP PCI Express x4 Quad Port Copper Gigabit Server Network Adapter (Intel I350 Based)
MTN350-4SFP is a PCIe x4 1Gbps Dual-Port SFP Sever Fiber Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on a server workstation and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its two or four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.
- Quad SFP Port
- PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
- SFP Connectivity
- Network Virtualization
- Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports
- IEEE 802.1q VLAN support with VLAN tag insertion
- Low profile and full-height bracket
| Controller | Intel I350 |
| Transmission Rate Per Port | 1 GbE |
| Network Standard Physical Layer Interfaces | 1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
| 1000BASE-LX: 10Km at 9µm | |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Boot Option and Virtualization | PXE support, Intel® VT-c |
| LED Indicators | Link LED: Green; ACT LED:Yellow |
| Operating System Support | Windows Server 2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
| WindowsXP / Vista /7 / 8 / 8.1 / 10 | |
| Linux SLES 10 / 11 or later | |
| Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later | |
| VMware ESX/ESXi 4.x/5.x/6.xor later |
