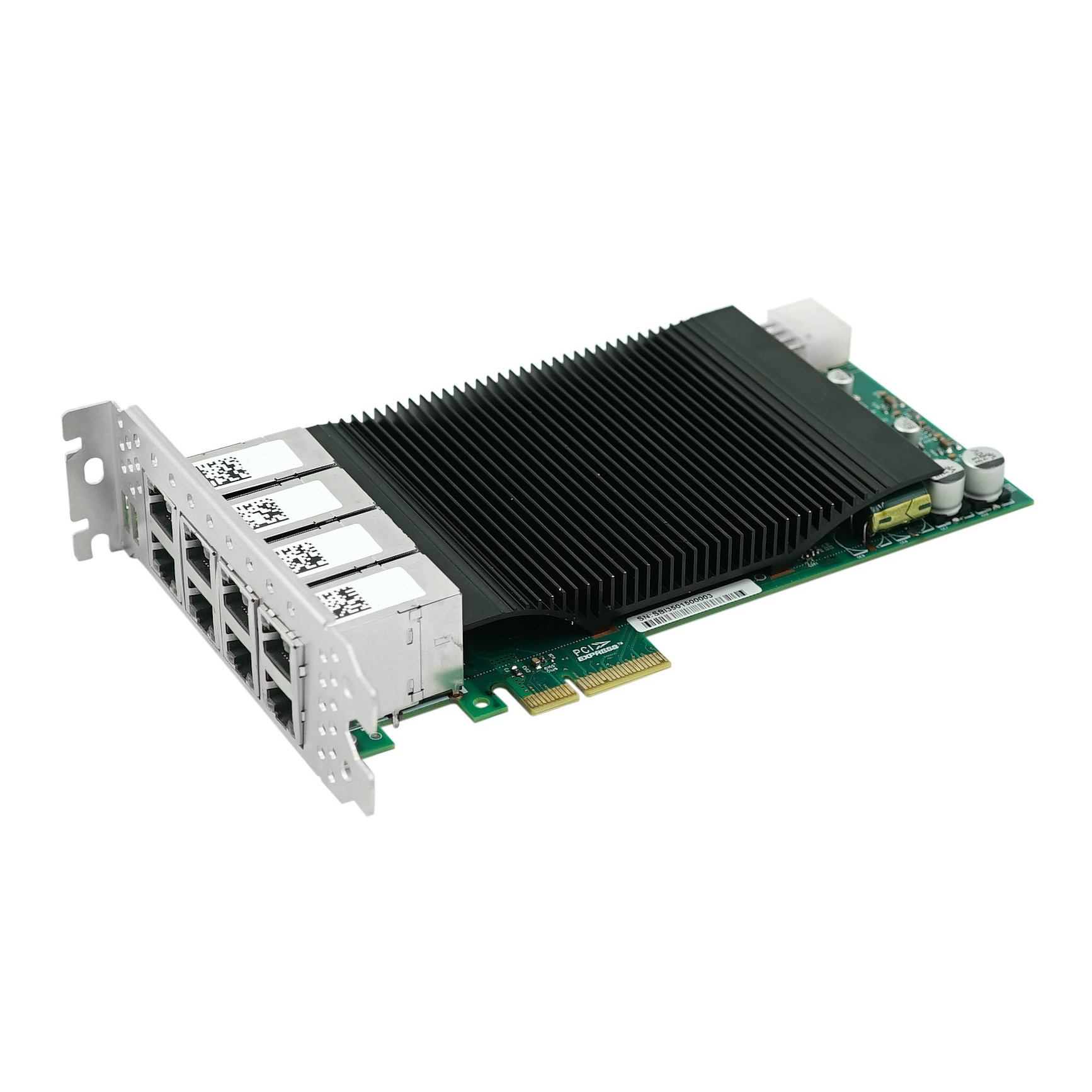

MTN350-8RJ-PoE
8-Port 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350)
• The single-port PoE output power consumption is up to 30W
• The power output of adaptive to external equipment: Class 0, Class 1, Class 2, Class 3
• The PoE adapter card is designed with wider RJ45 spacing.
• Specially designed for industrial cable access interface, the collocation of MABLETECH customized industrial Ethernet cable, can a more stable locking copper cable and RJ45, effectively solve the problem of industrial sites RJ45 connection copper cable is not stable, also compatible with standard cable access
• The larger heat sink can effectively solve the problem of heat dissipation of the PoE card in the case of poor heat dissipation environment, and effectively ensure the stable operation of the PoE adapter card for a long time
• Carefully selected the RJ45 connector with thick and heavy gold to ensure more solid and reliable connectivity
• The design of 8 RJ45 can better save the valuable PCIe slot resources of the main board
Applications: Machine Vision, Industrial Control, Access Control, In-Vehicle System
MTN350-8RJ-PoE is a PCI Express x4 8 port copper gigabit Ethernet PoE industrial Ethernet network card based on Intel I350AM4 chipset, be developed independently by MABLETECH INC. It can compatible with x8,x16 slot.
The PoE network card be made is mainly applied to the industrial site visual inspection server and other devices, visual field client, fast moving Ethernet data transmission equipment, etc., it also applies to common server.
The PoE Network Card has integrated hardware acceleration capability to perform TCP/UDP /IP checksum offload and TCP segmentation tasks. Host processing technology can be divided into the accelerator, the host processing technology can be divided into the accelerator, release CPU resources occupied to free up more CPU resources to handle with other applications.
The PoE network card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
| Controller | Intel I350 |
| Cable medium | Copper cable |
| Cable Type | Cat 5E and Cat6 : 1000Base-T up to 100m (POE power supply min requirement Cat5) |
| Cat 5/5E and Cat6 : 100Base-T up to 100m (POE power supply min requirement Cat5) | |
| Bracket | Full-height Bracket |
| Thermal design power consumption (max) | 9W |
| Single-port PoE output power consumption(max) | 30W |
| Operating system support | Windows XP |
| Windows Vista | |
| Windows 7 | |
| Windows 8/8.1 | |
| Windows 10 | |
| Windows Server 2003 /R2 | |
| Windows Server 2008 /R2 | |
| Windows Server 2012 /R2 | |
| Windows Server 2016 /R2 | |
| Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later | |
| Red Hat Enterprise Linux 5 / 6 / 7 or later | |
| SUSE Linux Enterprise Server 10/11 or later | |
| VMware ESX/ESXi 4.x/5.x/6.x or later | |
| FreeBSD 9 / 10 or later | |
| Connector | 8 * 8-Pin RJ45 |
| PCIe Bus Type | PCI Express v2.1 (5.0GT/s) x4, compatible with x8,x16 |
| Rate | 10Mbps/100Mbps/1000 Mbps |
| Technical Features | |
| Ethernet Power Management | Yes |
| IEEE* 802.3 Automatic negotiation | Yes |
| IEEE Standard | IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 1588 IEEE 802.3 IEEE 802.1p IEEE802.3x, IEEE802.3af IEEE802.3at |
| PCI-SIG* SR-IOV | Yes |
| Jumbo frame packet | Yes |
| VMDq | Yes |
| WOL | Yes |
| PXE | Yes |
| DPDK | Yes |
| iSCSI | No |
| FCoE | No |
| Environment Features | |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 90% non condensing under 35℃ |
| Certifications | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| LED Indicators | |
| LED | 1000Mbps: Link:yellow，ACT: green |
| 100Mbps/10Mbps: ACT: green | |
| Physical Features | |
| PCB Dimension(mm) | 186*105*1.6 |
| Weight (g) | 340 |
Order Information
| Part Number | Speed | Controller(s) | Port number | Port type | Description |
| MTN350-2RJ-PoE | POE | Intel I350 | 2 | RJ-45 Ports | 802.3at PoE+ Machine Vision Frame Grabber card (Based on Intel I350) |
| MTN350-4RJ-PoE | 4 | ||||
| MTN350-8RJ-PoE | 8 |
