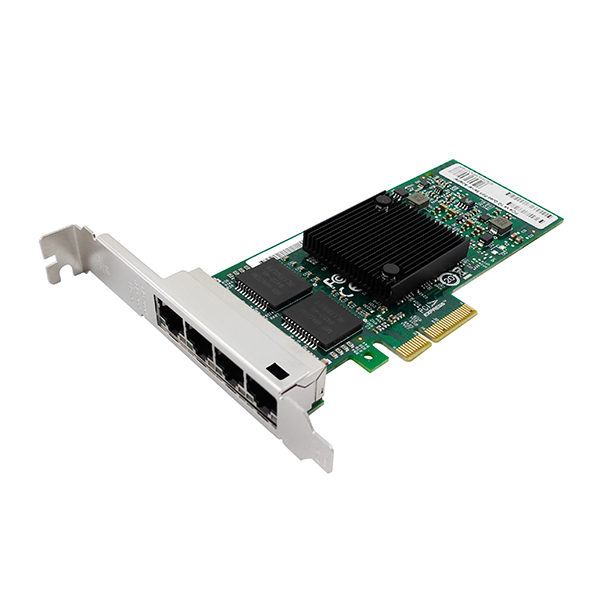

MTN82580-4RJ PCIe x4 Quad Port Copper Gigabit Server Network Adapter (Intel 82580 Based)
MTN82580-4RJ is a PCIe x4 1Gbps Quad Port Copper Server Ethernet Adapter based on Intel 82580 chipset, compatible with PCIe x8 and x16 slot.
- Four high-performing 1000BASE-T Ethernet
- PCI Express Gen 2.0 5 GT/s
- Based on the Intel 82580 Gigabit Ethernet Controller
- Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
| Controller | Intel 82580 |
| Transmission Rate Per Port | 10/100/1000Mbps |
| Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m |
| 100BASE-Tx:Cat5/5e/6or higherup to 100m | |
| 10BASE-T:Cat3/4/5/5e/6or higherup to 100m | |
| Jumbo Frame Support | Up to 9 KB |
| Operating Temperature | 0 °C to 55°C (32 °F to 131°F) |
| Boot Option and Virtualization | PXE support, Intel® VT-c |
| LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, |
| 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |
| Operating System Support | Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
| WindowsXP / Vista /7 / 8 / 8.1 / 10 | |
| Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later | |
| Linux SLES 9 / 10 / 11or later | |
| VMwareESX/ESXi4.x /5.x / 6.xor later |
