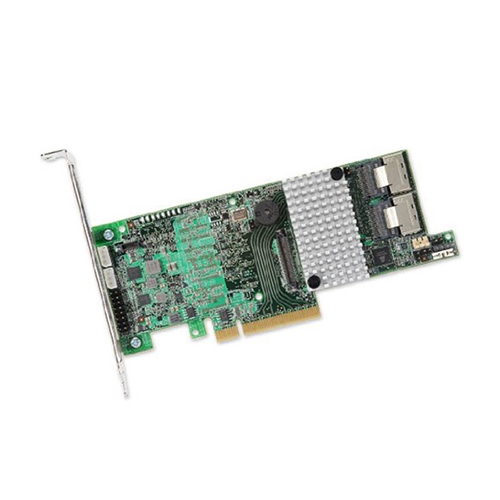

MegaRAID SAS 9271-8i SAS 6G/s 8PORT int SAS/SATA PCI-e3.0 RAID
Datacenter, cloud and high-performance computing environments need storage capacity to handle massive volumes of data, and must provide data protection and performance to meet the needs of applications and end users. The MegaRAID® SAS 9271-8i 6Gb/s SAS and SATA RAID Controller Card delivers performance and RAID data protection for a wide range of server storage applications.
- Connect up to 128 SATA or SAS drives with eight internal 6 Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Bandwidth to support critical applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection and heat-tolerant battery backup cache protection modules
| Mode Name | 9271-8i |
| Bus Type | x8 PCI Express 3.0 |
| Chipset | LSISAS2208 Dual-Core RAID on Chip (ROC) |
| Cache Memory | 1GB 1333MHz DDRIII SDRAM |
| Internal Ports | 8 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 6, 10, 50, and 60 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 128 SAS and/or SATA drives |
| Internal Connectors | 2 HD Mini-SAS SFF8087 |
| MTBF | 1,031,514 hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management Software |
MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | Optional MegaRAID CacheVault Flash cache protection module (LSICVM01) Optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09) |
| Physical Dimensions | MD2 Low profile (6.6″ x 2.536″) |
| Warranty | 3 years |
