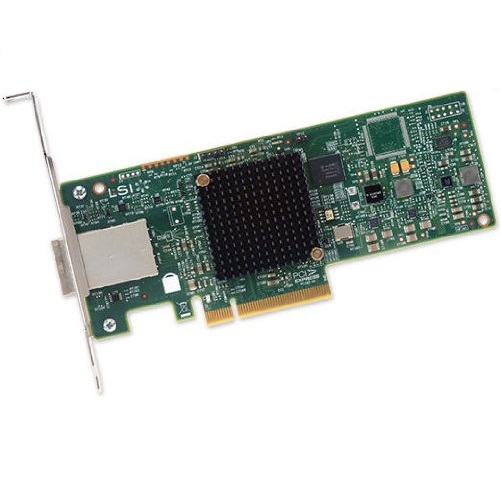

SAS 9300-8e SAS 12G/s 8PORT ext SAS/SATA PCI-e x3.0 HBA
For applications needing external storage connectivity, the SAS 9300-8e 12Gb/s SAS Host Bus Adapter allows servers of any size to attach to over 1000 SAS or SATA end devices in external enclosures. Scale storage to support performance and capacity-intensive applications with 12Gb/s SAS and the flexibility to support 6Gb/s SATA drives.
- Connect up to 1024 SAS and SATA devices with 8 external 12Gb/s SAS and SATA ports
- Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
- Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity
| Mode Name | 9300-8e |
| Bus Type | x8 PCI Express 3.0 |
| Internal Ports | N/A |
| External Ports | 8 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | 1024 Non-RAID SAS/SATA devices |
| Internal Connectors | N/A |
| External Connectors | 2 Mini-SAS HD SFF8644 |
| MTBF | > 2,800,000 hours |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , and more. |
| Management Software | MegaRAID Storage Manager (MSM),
StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R |
| Physical Dimensions | Low profile (2.6” x 6.0”) |
| Warranty | 3 years |
相關商品
Audio-Video Products
Pro Capture HDMI 4K Plus LT
Captures one of the followings
Capture HDMI + embedded audio
Loop-through HDMI + embedded audio

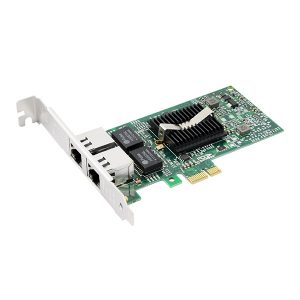

MTN82576-2RJ PCIe x1 Dual Port Copper Gigabit Server Ethernet Adapter (Intel 82576 Based)
