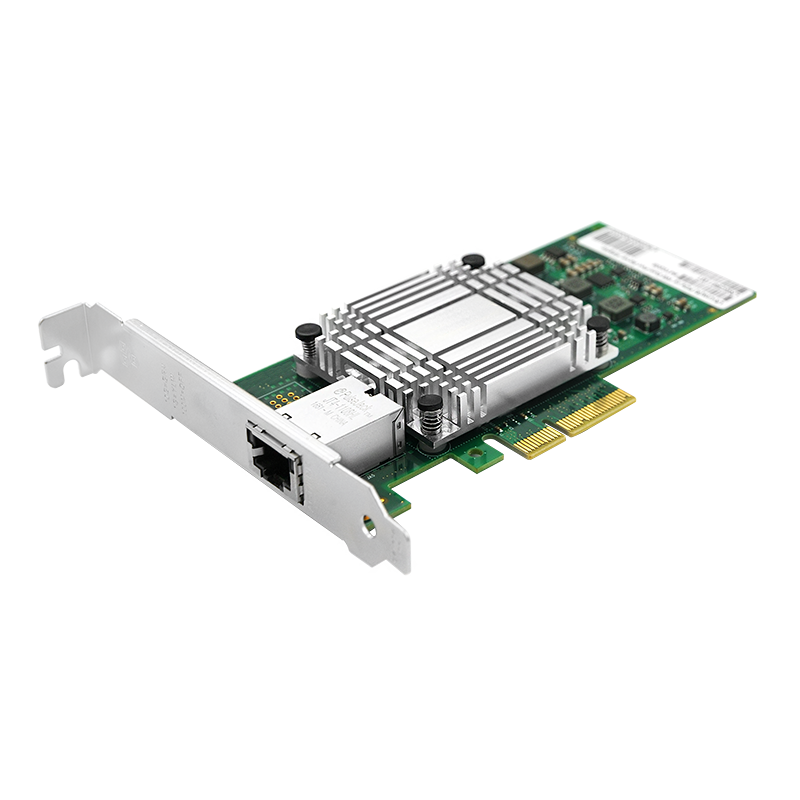

MTN550-1RJ PCIe v3.0 x4 10 Gigabit Single Copper Port Ethernet Server Adapter (Based on Intel X550)
MTN550-1RJ a PCIe x4 3.0 10Gbps Single Port Ethernet Server Adapter based on Intel X550 chipset, independently developed by MABLETECH, and is compatible with PCIe x8,x16 slot. This adapter card optimizes its performance, making the system I/O no longer be the bottleneck of the network application.
The Server Adapter MTN550-1RJ T Simplifies Migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).
- Single port 10GbE adapters
- PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes
- Low cost, low power,10 GbE performance for the entire data center.
- Standard CAT 6a cabling with RJ45 connectors.
- New generation single and dual port 10GBASE-T controller with integrated MAC and PHY
- Unified networking delivering LAN iSCSI and FCoE in one low-cost CAN
- Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
- Network Virtualization, low latency
- Low profile and full-height bracket
| Controller | Intel Ethernet Controller X550AT |
| Baffle Height | Full height and half height |
| Power Consumption | Typical Power11.2W; Maximum Power13.0W |
| System Support | Windows Server* 2012 R2;
Windows Server 2012 R2 Core; Windows Server 2012; Windows Server 2012 Core; Windows Server 2008 R2; Windows Server 2008 R2 Core; Linux* Stable Kernel version 2.6.32/3x; Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12; FreeBSD* 9 and FreeBSD* 10; UEFI* 2.1; UEFI* 2.3; VMware ESXi 5.1(Limited Functionality); VMware ESXi 5.5 |
| Ports | Single 10GBASE-T RJ45 Port |
| Bus type | PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible) |
| Bus Width | x4 lane PCle operable in x8 and x16 slots |
| Data rate supported per port | 10 GbE/1 GbE/100MbE |
| LED Indicators | Link（green/orange bright）and ACTIVITY( green flashing)
Link Rate(green=10Gbps；orange=1Gbps/100Mbps) |
| Virtual Machine Device Queues (VMDq) | Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage
QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking Sorting based on MAC addresses and VLAN tags |
| Support for PCI-SIG SR-IOV | Up to 64 VFs per port |
| IEEE 802.1Q VLAN Support with VLAN Tag | Ability to create multiple VLAN segments |
| VXLAN Stateless Offloads | A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks |
| NVGRE Stateless Offloads | Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks |
| Intel® Flow Director | Yes |
| MSI-X | Yes |
| FPP – 64 VFs Per Port | Yes |
| Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities | Yes |
| Tx TCP Segmentation Offload | Yes |
| SNMP and RMON | Yes |
| Protocol Support | IEEE 802.1Q* VLANs
IEEE 802.3 2005* flow control support compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification compatible the 10 GbE 802.3ap (KR) Specification compatible 1000BASE-BX Specification |
| PXE | Yes |
| WoL | No |
| Jumbo frames | 15.5 KB |
| Ethernet power management | Yes |
| Storage | iSCSI, NFS,FCoE,SMB |
| Operating temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
| Air Flow | Minimum of 1 50 LFM required |
| Certifications | FCC CE RoHS |
| Size（LxWxH）mm | 137X69X1.6 mm |
