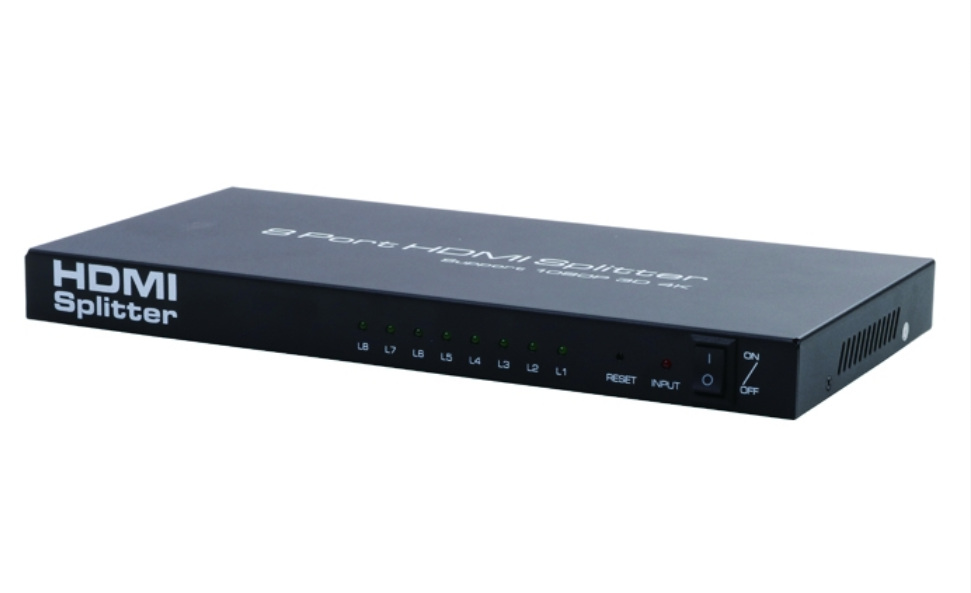

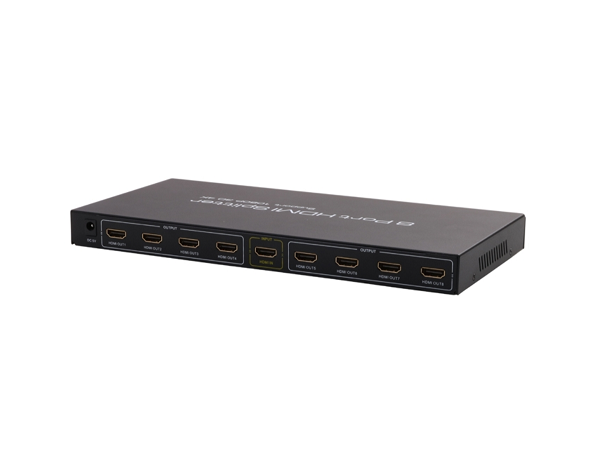

SH -108 HDMI Splitters 8-port
Simultaneously displays any Ultra Hi-Definition source on up to eight Ultra HD displays.
Supports HD resolutions up to Ultra HD 4Kx2K and 1080p Full HD.
• Supports 3D video format.
• Supports 340MHz per channel (10.2Gbps all channel) bandwidth.
• Supports 12-bit per channel Deep Color.
• Automatic EDID learning ability to maximize the compatibility with display units.
• Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus and DTS-HD Master Audio™.
• DVI 1.0 and HDMI 1.4a Specification Compliant.
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters.
• Supports ESD / EFT / Surge Protection ( 15KV ).
• Easy to Use: Install in seconds, no need of setting.
• Provide a magnetic pad to simplify installation.
Module Name SH108
In port HDMI
Function Splitters 1to 8
>EMPL-G102_Datasheet
>EMPL-G102_Datasheet
Extend VGA and stereo audio signal over one Cat.5/5e cable.
- Support stereo audio function.
• Transmitter unit built in VGA loop output.
• Remote / local monitors and speakers can broadcast simultaneously.
• Support VGA resolution and distance up to 2048×1536@300eters.
• Use Cat.5 Enhanced UTP cable ( 350MHz bandwidth ) for best quality.
• Support VGA, XGA, SVGA, SXGA, UXGA, Multi-sync, TFT-LCD with DDC2B function.
• Receiver has video Gain and Focus adjustments for optimum image. - Support Plug & Play; Software not required.
• Perfect for control remote machines and security monitoring systems.
• Provide a magnetic pad and attachable metal plate to simplify installation.
